Brentwood Cycle

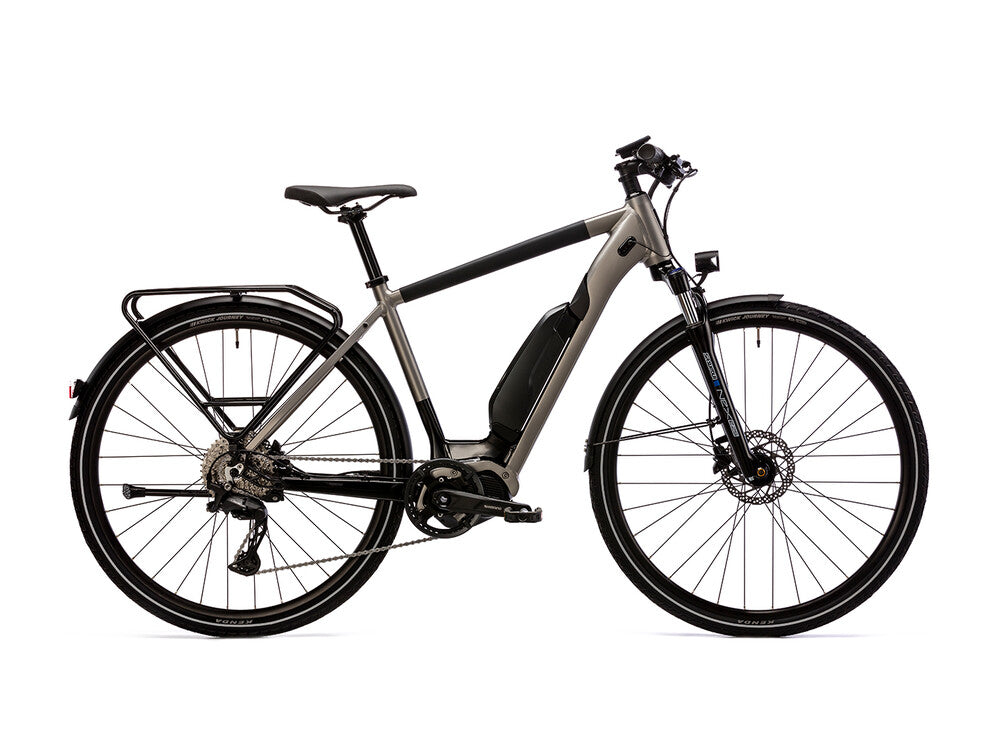

Opus WKND LRT TITANIUM SILVER
Opus WKND LRT TITANIUM SILVER
Regular price
$3,799.00 CAD
Regular price
$2,703.08 CAD
Sale price
$3,799.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
TO RIDE IT, IS TO ADOPT IT
Features
- Lightweight 6061 aluminum frame
- Suntour Nex E-25 suspension fork
- Shimano Cues 1x10 drivetrain
- Shimano MT201 hydraulic disc brake
- Integrated front, rear lights, fenders and rack
Specifications
| Frame | Aluminum |
| Fork | Suntour NEX E-25 63mm with lockout |
| Sizes | S-M-L |
| Shifters | Shimano CUES U6000 10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES U6020 |
| Brakes | Shimano BR-MT201 hydraulic disc |
| Brake Levers | Shimano BL-MT201 |
| Crank | Shimano FC-EM600 |
| Chainrings | 38 |
| Bottom Bracket | N/A |
| Cassette Cogs | Shimano 11-39 |
| Chain | KMC eGlide EPT |
| Headset | FSA Orbit integrated sealed |
| Handlebar | Promax flat |
| Stem | Promax 70/80mm |
| Grips/Tape | Velo ergo dual density |
| Saddle | Opus E-CITY |
| Seatpost | Promax 30.9 x 350mm |
| Wheels/Rims | Weinnman U28 TL |
| Hubs | Formula/Shimano |
| Tires | Kenda Kwick Journey 700 x 42 |
| Pedals | Wellgo flat |
| Other | Shimano EP600 250W 85Nm |
| Other | Shimano EN-604 418Wh 36V 11.6Ah battery |
| Other | SC-EN610 Cycle computer with large color display |
Geometries
| SIZE | S | M | L |
| SIZE (CM) | |||
| RIDER (± 5CM) | 155 | 165 | 178 |
| RIDER (± 2") | 5'1" | 5'5" | 5'10" |
| SEAT TUBE | 440 | 480 | 520 |
| TOP TUBE | 590 | 605 | 620 |
| HEAD TUBE | 145 | 145 | 155 |
| HEAD ANGLE | 71 | 71 | 71 |
| SEAT ANGLE | 73 | 73 | 73 |
| CHAIN STAY | 440 | 440 | 440 |
| BB DROP | 65 | 65 | 65 |
| STACK | 623 | 623 | 632 |
| REACH | 400 | 415 | 427 |
| STAND OVER | 740 | 780 | 810 |
| BAR | 620 | 620 | 620 |
| STEM | 70 | 70 | 80 |
| CRANK | 170 | 170 | 170 |
