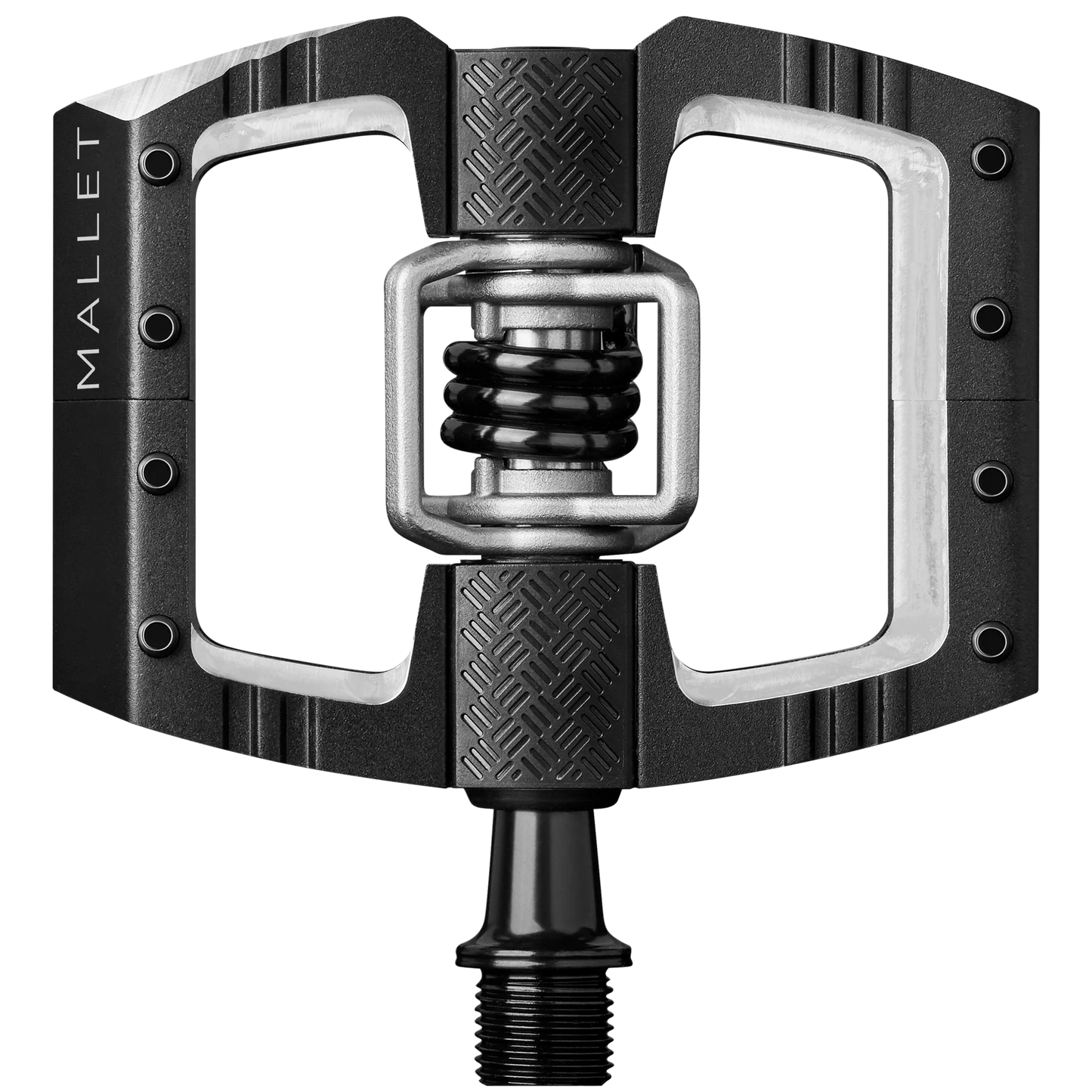

Crankbrothers Mallet DH

• Concave platform for secure foothold
• 8 adjustable pins per side for grip
• Traction pad technology customizable interface
• Ribbed body for better traction when unclipped
• Chamfered edges to reduce rock-strikes
• 57mm q-factor for stability at speed
• 4-sided entry / superior mud shedding
• Customizable float & release angle
• Premium bearing & double seal system

BODY MATERIAL6061-T6 Aluminum

BODY DIMS (L X W)100mm x 78mm

WING MATERIAL17-4PH Stainless

SPINDLE LENGTH57mm

TRACTION PINS8 adjustable per side

PIN LENGTH8mm

INNER BEARING TYPEIgus LL-glide bearing

OUTER BEARING TYPEEnduro MAX cartridge bearing

ENDCAPHex alloy

SPINDLE MATERIALForged SCM 435 Chromoly Steel

SPRING MATERIAL300 series stainless steel

MAX RIDER WEIGHTNo restriction

WEIGHT479g per pair

INCLUDED CLEAT TYPE15° / 20° Standard Release, 6° Float

CLEAT NOTICEThird-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.

WARRANTY5 years
